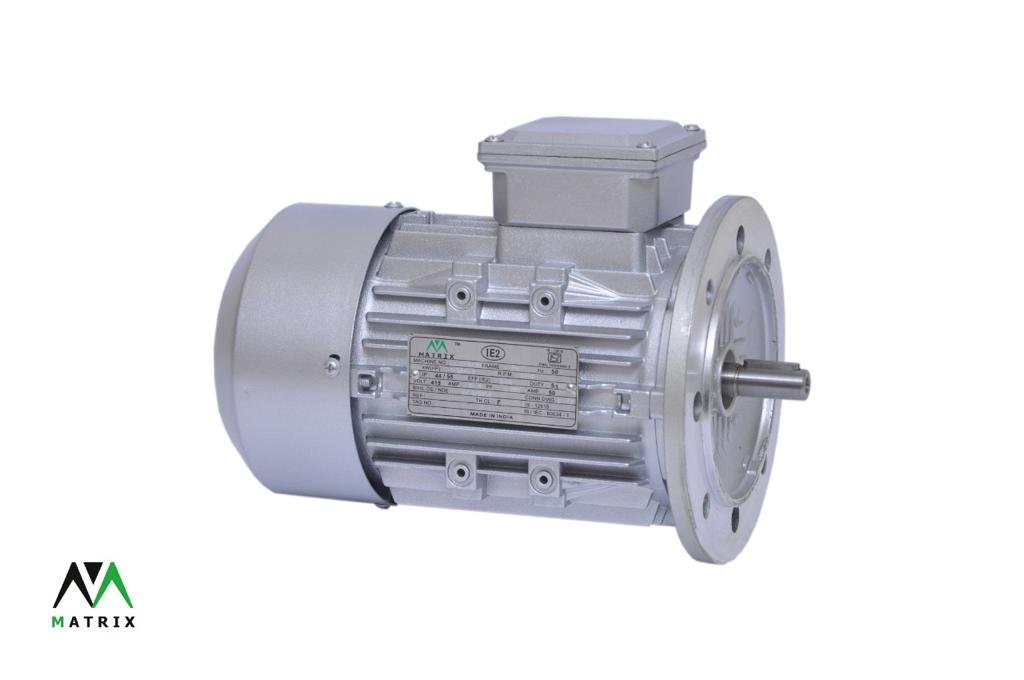

IE2 Brake Motors
We have a range of AC brake motors and DC brake motors both.
TranstorQ offers MXB series Brake Motors. Which are for various applications requiring almost instant stopping of drive load. The braking action is obtained without axial sliding of the shaft and provides equal braking torque in both directions of rotations. Basically brake motor combination of an a.c. induction motor and a disc type, fail safe Electromagnetic brake unit. The MXB series covers products with outputs from 0.18Kw to 1.5KW in frame sizes 63 to 100 in 2, 4 & 6 pole speed.
above 1.5Kw we offer brake motors in casting body upto 7.5Kw in 2,4 & 6 pole speed.
| Technical Information | ||
|---|---|---|
| Type:- | AC Squirrel Cage Induction Motor | |
| Frame:- | 63 to 132M Cast Iron | |
| Rated Power:- | 0.18Kw to 7.5Kw | |
| Brake Supply:- | DC & AC | |
| Rated Speed:- | 3000, 1500, 1000 | |
| Frequency Variation:- | 50Hz (±5%) | |
| Voltage Variation:- | 415V or 230V (±10%) | |
| Cooling Method:- | IC 411 (Shaft Mounted Fan) | |
| Degree of Protection:- | IP55 | |
| Duty:- | S1/ Continues | |
| Ambient Temperature:- | 50º C | |
| Insulation Class:- | Class "F" | |
| Direction of Rotation:- | Clockwise & anticlockwise as seen from Drive End Side | |
We also offer motors above 7.5Kw in brake motors made to order and in brake motors we provide any type of customisation to serve special applications.
