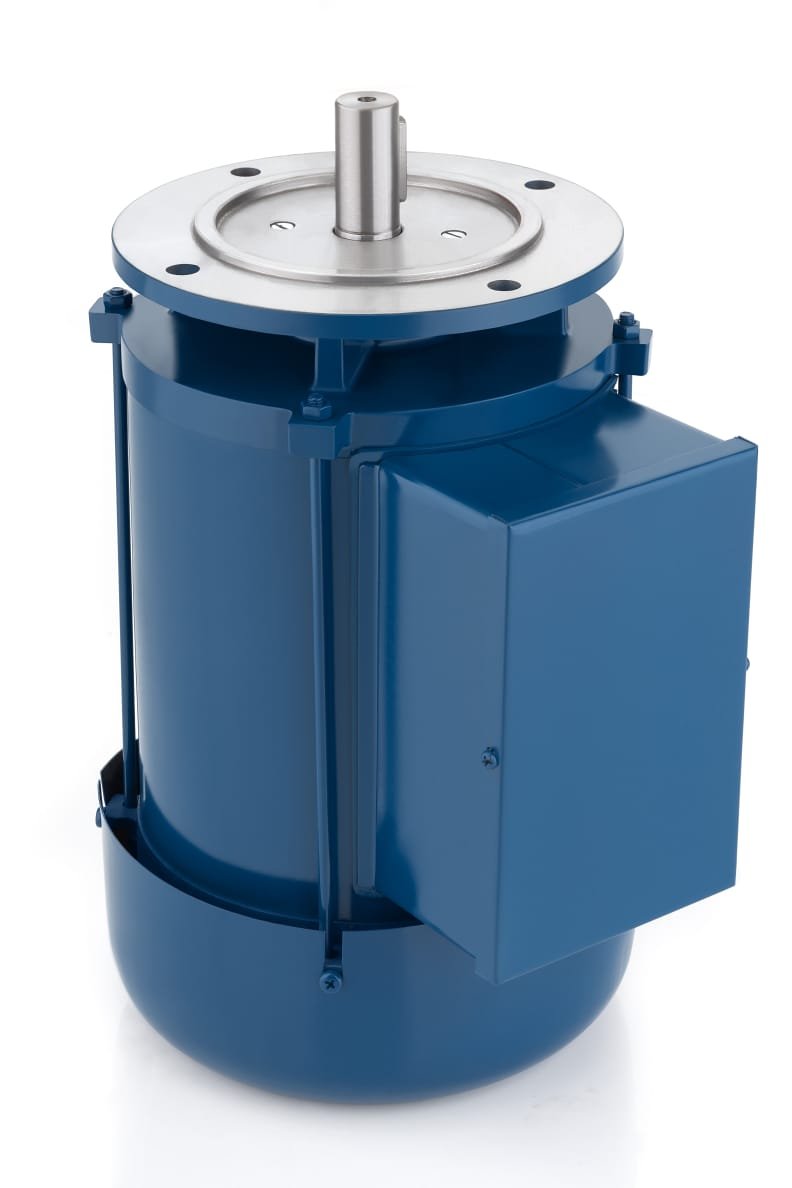

Single phase IEC Frame Motors

We only manufacture flange mounting single phase motors CSCR type to attach with all type gearbox range and other applications.
Testimonial
Range: From 0.09 kW to 2.25 kW (1/8 HP to 3 HP) in single phase
Only B5 mounting to meet any gearbox requirement.
Motors with ball bearings
Available in various enclosures
Low vibration and low noise
Special shaft, special voltage/frequency motors also available
Custom-built motors to meet specific applications
Sheet metal body
Insulation class 'B' or 'F'
Thermally protected motor (optional)
Range

TranstorQ has a wide range of motors ranging from 20 watts (0.025 hp) to 2250 watts (3 hp) in single phase designs.

Rating

All standard motors are continuously rated to comply with performance standards. Special motors for cyclic or short time duties can also be offered against specific applications. Enclosures

Totally enclosed fan cooled (TEFC)

Bearing and Lubrication

Sleeve bearing motors are lubricated for life by using the Permawick lubrication system. This can give 50,000 hours of operation without lubrication at normal running. Ball bearing motors use double shielded deep groove bearings and are life lubricated. This offers you trouble free motor life.

Centrifugal gear and Open circuit switch

Field proven centrifugal gear is used for trouble free operation. Open circuiting switch has sintered contact/s consisting of silver alloy and copper. These contacts have excellent anti-weld properties and can safely rupture heavy current.

Typical Applications
Vacuum pumps
Wet grinders
Sewing machines
Machine tools
Box strapping machines
Floor polishers
Pouch making machines
Printing presses
Sugar cane crushers
Jewellery making machines
Room coolers
Needle vibrators
Commercial air-conditioning
Poultry equipments
