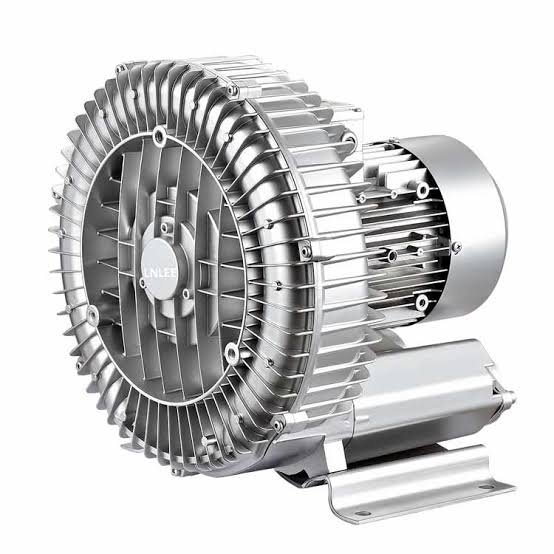

Single phase Ring Blowers
The Ring Blowers are suitable for all those applications requiring considerably higher pressure than those which can be achieved using a centrifugal blower.
The Ring Blowers are suitable for all those applications requiring considerably higher pressure than those which can be achieved using centrifugal fans. Side Channel exhausters are used in all those applications requiring an operating vacuum higher than the one achievable by a fan, but not as to require the use of a vacuum pump. The rotating parts are not in contact with the casing. There is, therefore, no friction during operation and thus no internal lubrication is necessary.
| Power Rating : | 0.20kw To 25kw | |
|---|---|---|
| Maximum Flow : | 2050 M3/hr | |
| Maximum Pressure : | 670 Mbar | |
| Maximum Vacuum : | 460 Mbar | |
features
Higher Pressure Ratio
100% Oil-Free Continuous High Pressure Air Flow
Blower Can Be Used For Pressure Or Vacuum Applications
Low Noise Level (65dba Normal, 85 dba Max.)
110% Overload Protection
±10% Voltage Fluctuation Tolerance
Rated For Continuous 24 X 7 Duty
IP 55 Protection
Class F Insulation
Motor Design compatible with VFD Drive For Easily
Accommodating Operating Condition Changes
Accommodating Operating Condition Changes
Impeller Directly Mounted on Motor Shaft Eliminates
Maintenance Issues Like Change Of Gears, Pulleys, Belts
Maintenance Issues Like Change Of Gears, Pulleys, Belts
Pressure Die Casted Aluminum Alloy Body, Impeller & Rotor
Dust Proof Polymer Shaft Seal
Low Temperature Rise
Pulsation- Free Discharge
Light And Compact But Sturdy Aesthetically Appealing Design
CNC Machined For Close Tolerances And Better Performance
Dynamically Balanced Impeller Assembly For Longer Vibrations Free Life
High Temperature Grease Filled And Double Sealed NSK/SKF Bearings
For Trouble Free Operation For Long Periods
Space Efficient Easy Installation In Vertical Or Horizontal Position
With Built In Inlet And Outlet Silencers
Minimal And Simple Maintenance
Suitable For Environmental Protection
application
Waste Disposal / Slurry Declogging In Waste
Pneumatic Conveying of Solids / Liquids
Vacuum Transfer of Components / Sheets / Liquids
Blowing Away Debris / Sucking Away Debris
Industrial Vacuum Cleaning
Furnace Fuel Burning / Oil Atomization
Air Bearing / Air Mattress
Medical / Dental Suction Units
Air Sampling / Monitoring Equipments
Cable Pressurization
Liquid / Semisolid dispenser
Food Processing and Packaging Applications
To Agitate and Aerate Water in Spa / Whirlpool/ Swimming Pool / Fishing Tanks / Aqua Culture Tanks / Plating Tanks / Concrete / Laundry
Sorting / Counting of Cards / Envelopes / Papers
Beverage Bottling / Labeling / Drying/Ink Jet Coding
Safe and Economical Personal Cleaning Solutions
Environmental / Pollution Control and safety equipments
During Printing Feed / Transfer of Paper Sheets / Ink Drying
Agitation of Liquid Bath for Vegetables and Fruits Washing
Provide Air Cushion to Handle Delicate Material like Eggs / Glass
Air Curtain, Protection from Dust Ingress and Isolation applications
Agricultural Pesticides and Fertilizer Mixing and Spraying Applications
Keeping Yarn / Threads / Product in place during processing / sewing / knitting
To Suck Debris / Gases from Clean Rooms / Enclosed Spaces /
Tunnels / Laboratories
